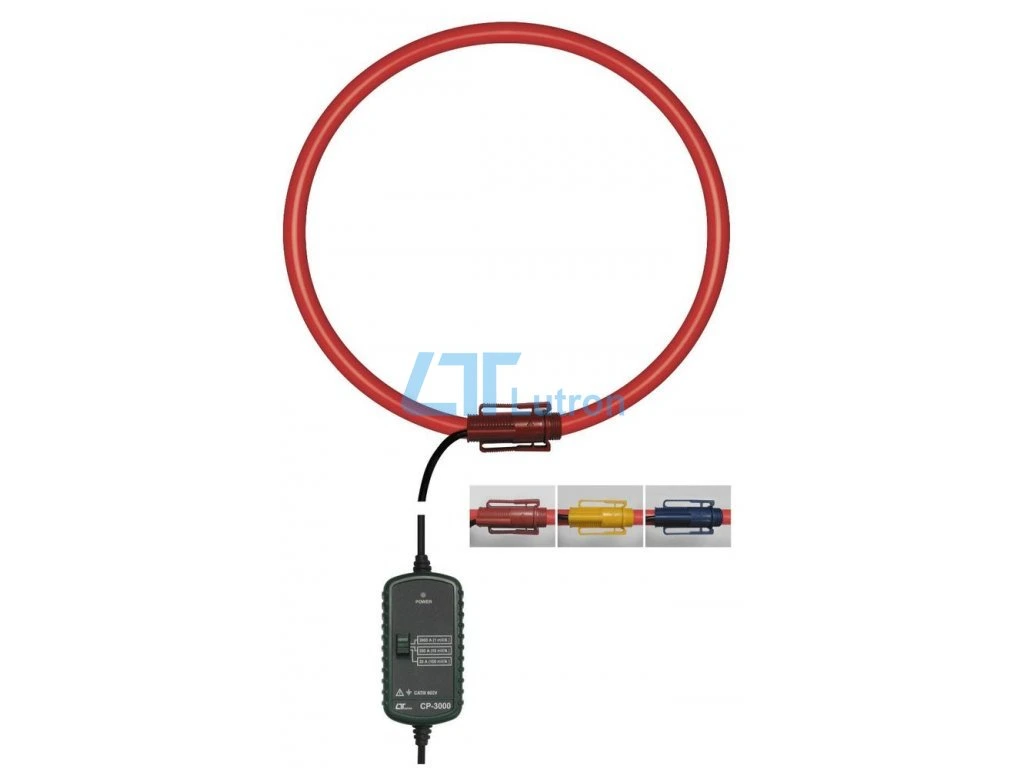

CP-3000 – Flexible 3000A AC Current Probe for High-Current Measurement

The CP-3000 is a flexible AC current probe designed for high-current measurement in industrial or field environments. It utilizes a Rogowski coil structure and provides switchable ranges for 30 A, 300 A, and 3000 A. With a flexible 600 mm probe and high output sensitivity (up to 100 mV/A), this probe is ideal for use in tight spaces or on large conductors. Powered directly from compatible meters such as DW-6093 and DW-6095, it requires no battery and delivers accurate results with minimal phase error.

Main Features:

• Measurement Ranges: 30 A / 300 A / 3000 A (switch selectable)
• Output Sensitivity: 100 mV/A (30 A), 10 mV/A (300 A), 1 mV/A (3000 A)
• Output Voltage: Up to 3 V AC depending on range
• Flexible Probe Length: 600 mm (23.6 inch)
• Flexible Probe Diameter: 14.5 mm (0.57 inch)
• Cable Length: 3.4 meters (11.2 feet), banana plug output
• Power Supply: Supplied from the meter (DW-6093 or DW-6095), no battery needed
• DC Plug Size: 5.5 mm × 2.5 mm
• High linearity: ±0.2% of reading (10–100% of range)
• Accuracy: ±1% of range (with conductor centered in the loop)
• Phase Error: Less than ±1.5° at 50/60 Hz
• Minimum Load: 100 kΩ
• Safety Rating: IEC 1010, CAT III 600V

Installation & Positioning Notes:

• For best accuracy, place the conductor at least 25 mm (1 inch) from the probe locker
• Maintain a distance of at least 200 mm (8 inches) between multiple flexible probes to avoid magnetic interference

Technical Specifications:

• Frequency Range: 45 Hz to 400 Hz
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Relative Humidity: <80%
• Main Unit Dimensions: 105 × 56.5 × 33 mm (4.1 × 2.2 × 1.3 inch)
• Weight: 426 g (0.94 lb)
• Enclosure Material: UL 94-V0 flame-retardant

Package Contents:

• CP-3000 Flexible Current Probe
• Operating Manual – 1 PC

Compatibility:

• Optional current probe for DW-6093 and DW-6095 meters
