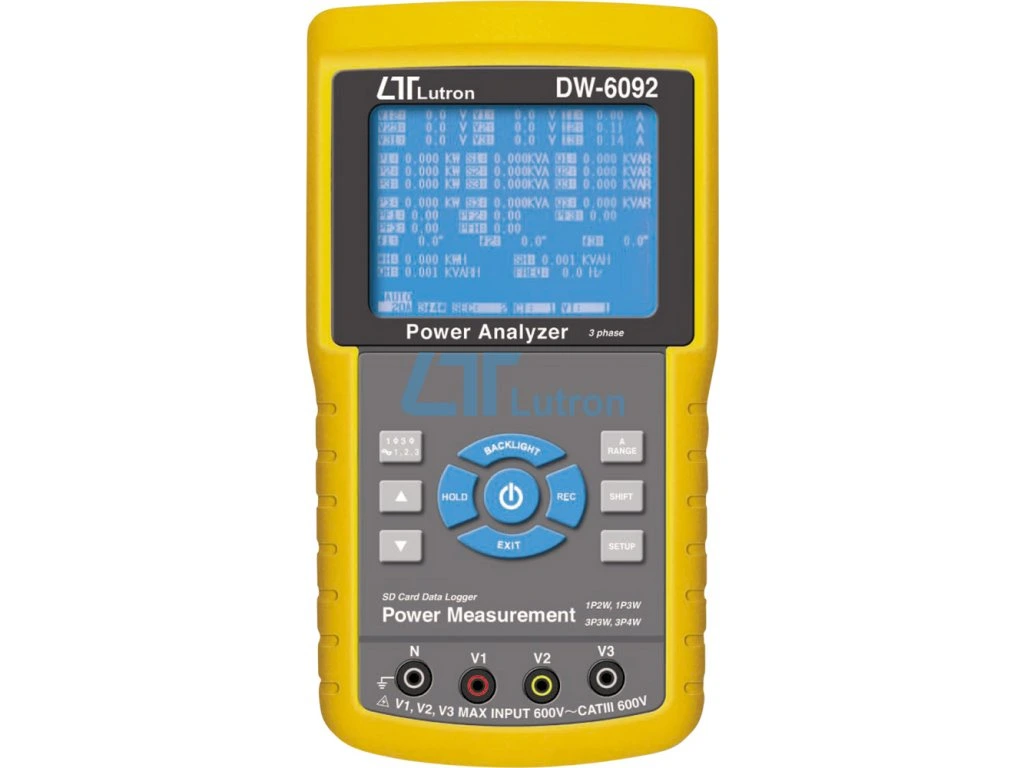

Three phase wattmeter and power analyzer with TrueRMS AC current (1200 A) and voltage (600 V) measuring.

PRINT ASK
Categories: , , ,

Product detailed description

Features:

  • Analysis for 3 phrase multi-power system, 1P/2W, 1P/3W, 3P/3W, 3P/4W
  • TrueRMS value for voltage and current.
  • Built-in clock and calendar
  • Real time data record with SD memory card
  • Safety standard: IEC 1010 / CAT III 600V
  • Weight: Meter 1049g and Clamp 522g
  • Clamp jaw: 50 mm
  • Computer data output – USB Cable/USB-01 and RS232 cable/UPCB-02



Measurement specifications:

  • Voltage measurement range: 10 to 600 ACV
  • Current measurement range: 0.2A to 1200 ACA
  • Optionable sampling time from 2 to 7200 second
  • True Power (KW / MW / GW) measurement.
  • Apparent Power (KVA / MVA / GVA) measurement.
  • Reactive Power (KVAR / MVAR/ GVAR) measurement.
  • Watt-Hour (WH / SH / QH / PFH).



Package contains:

  • DW-6092 device, 4 pcs Test leads, 4 pcs Alligator clips, 3 pcs Clamp probe, AC to DC 9V adapter, 2 GB SD memory card and Carrying bag

More technical and measurement specifications are listed in the DataSheet below.

DataSheet
